20-80A MPPT Solar Panel Regulator Charge Controller Auto Focus Tracking 12

MPPT Solar Panel Regulator Charge Controller Auto Focus Tracking 30-100A 12V/24V

30A/60A MPPT+PWM Blue Solar Charge Controller
Features:
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection,low heat production.

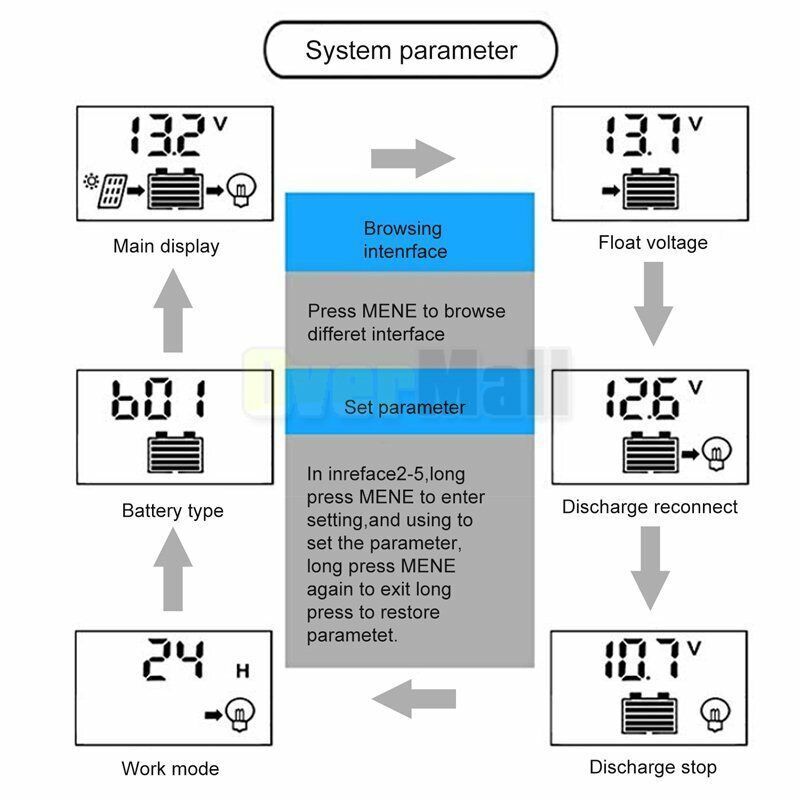

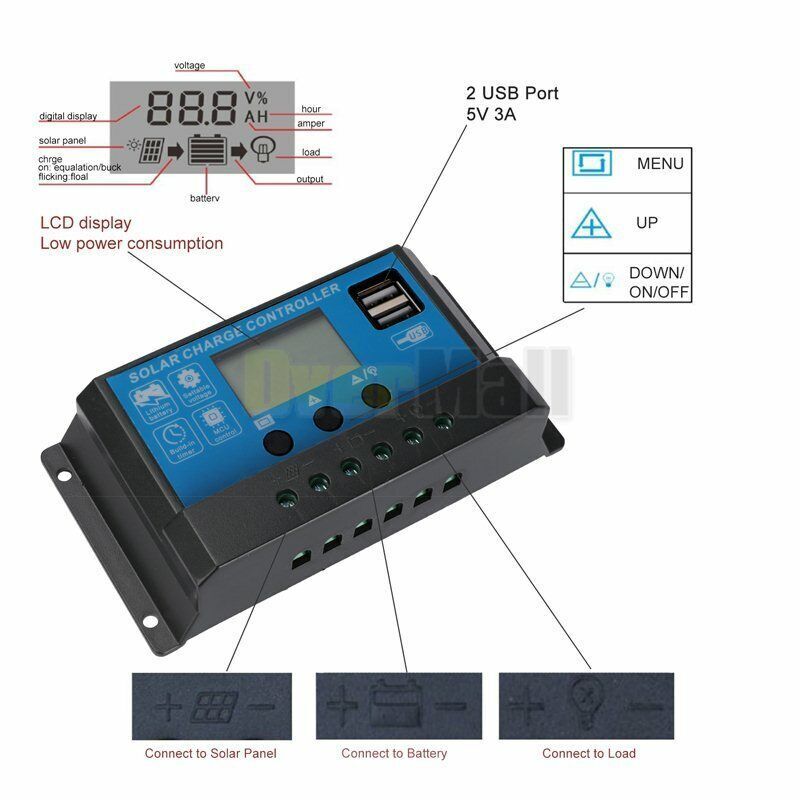

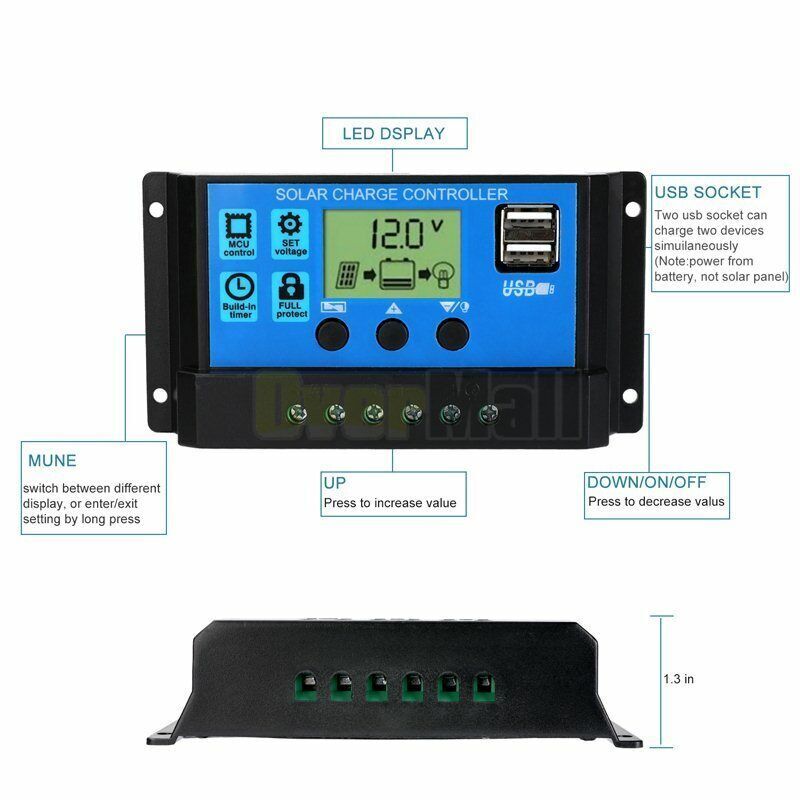

LCD display/key and operations:
MENU:Switch between different displays, or to enter/exit by long press.
UP: Press to increase value.
DOWN: Press to decrease value.

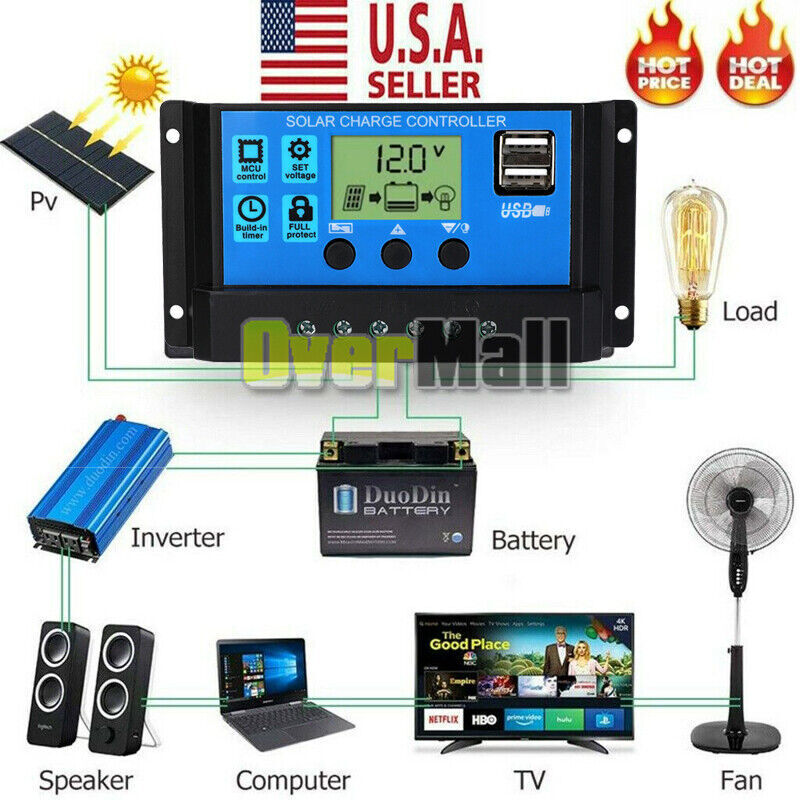

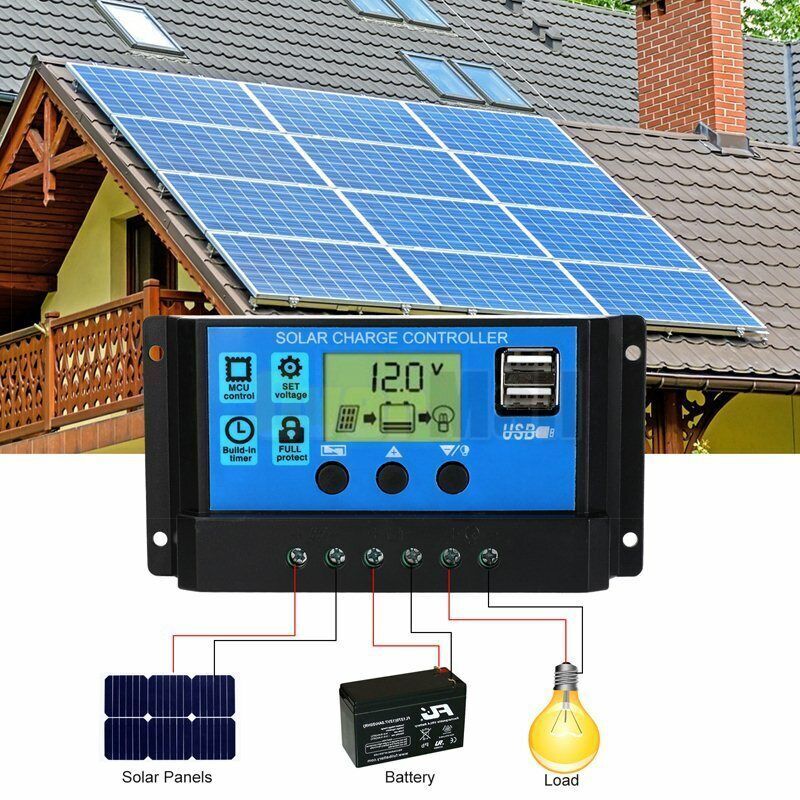

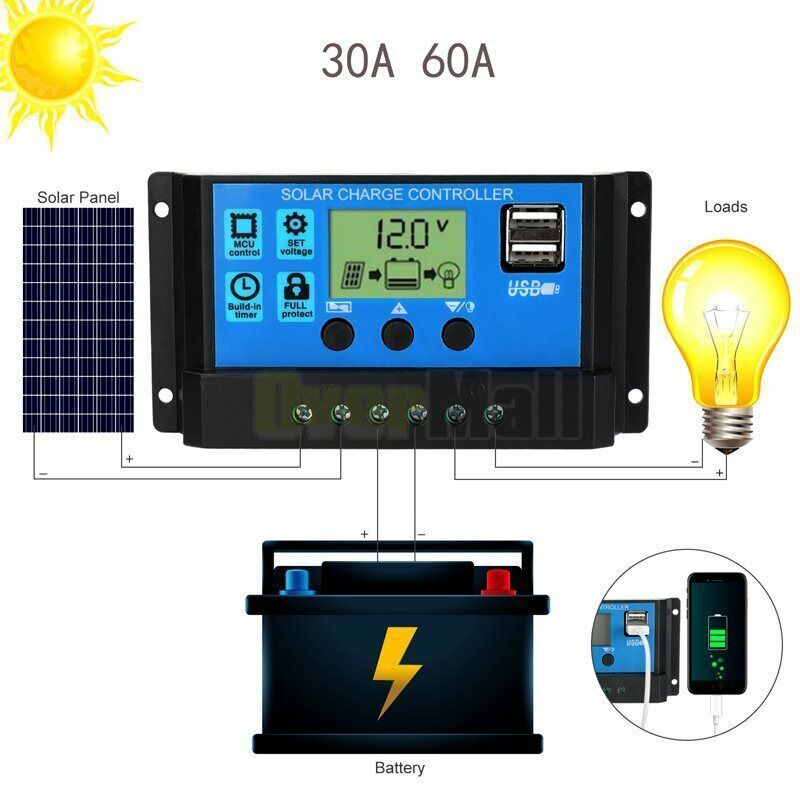

System Connection:
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3.Connect the consumer to the charge regulator - plus and minus.
*The reverse order applies when uninstalling!
*An improper sequence order can damage the controller!

Attention:
1.Press the [Down] button to manually ON/OFF load at the main display.
2.The working mode works as follows:
[24H] load output 24hours
[1-23H] load on after sunset and close after setting hours
[0H] Dusk to dawn

3.Batteries:Only for OPEN, AGM, GEL
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
5.Please make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

Specifications:
Charge: Light Control
MPN: RBL
Model: RBL-30A,RBL-60A
System voltage: 12V 24V
Maximum solar power (Solar panel):36V(24V battery) 18V(12V battery)
Maximum power input: 390W(12V system); 780W(24V system)
Equalization: 12.6V (sealed) 14.4V (gel) 14.6V (flood)
Floating charge: 13.7V(default, adjustable),12.0-15.0V
Discharge cut-off voltage: 10.7V(default, adjustable), 9.0-11.5V
Discharge reconnect voltage:12.5V(default, adjustable),11.0-13.0V
Rated current: 30A,60A
Self-consumption: < 10mA
Batteries:Only for OPEN, AGM, GEL
Operating temperature:-35~60

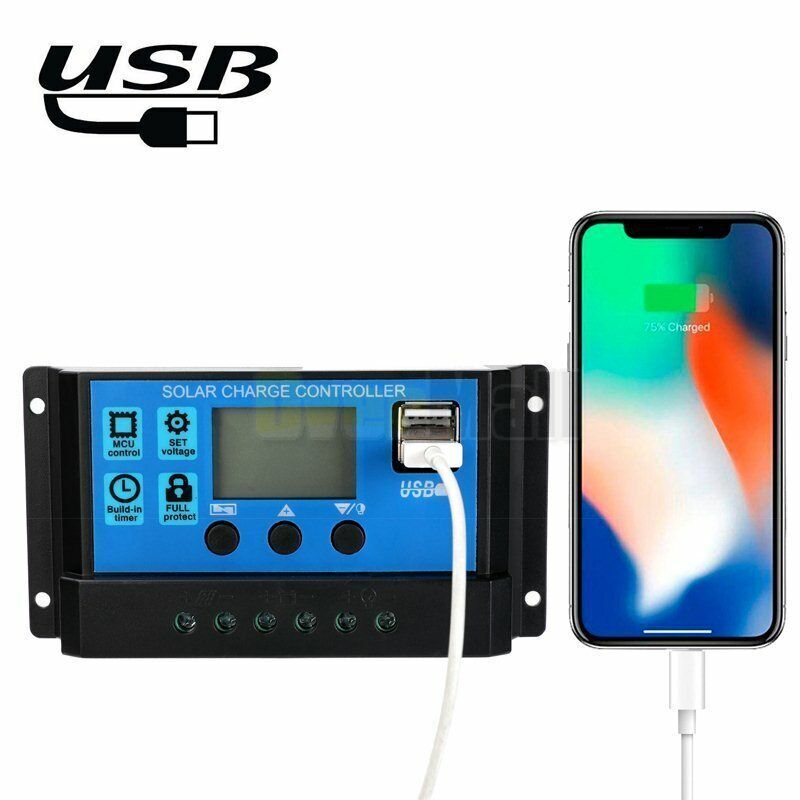

USB output:5V/2A Max

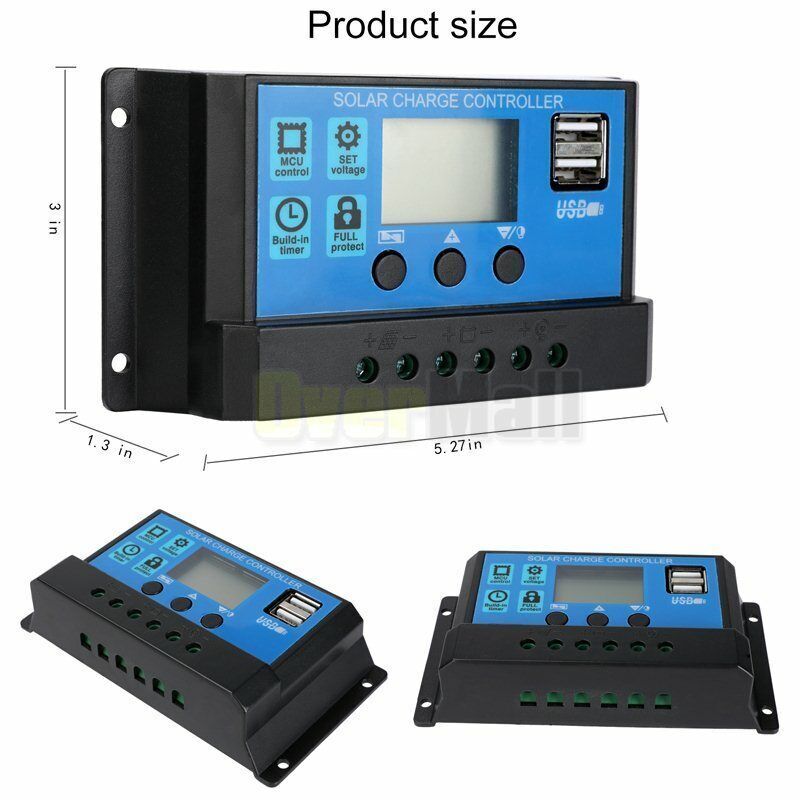

Dimension 13.4*7*3.3cm

Package includes:
1x Solar Charge Controller
1xUser Manual

10/30/60/80A/100A MPPT+PWM Orange Solar Charge Controller
Advantages:
- Advanced Maximum Power Point Tracking (MPPT/PWM) technology, the efficiency is no less than 99.5%. High quality components improve system performance, and the maximum conversion efficiency is 98%. Ultra-fast tracking speed and guaranteed tracking efficiency.

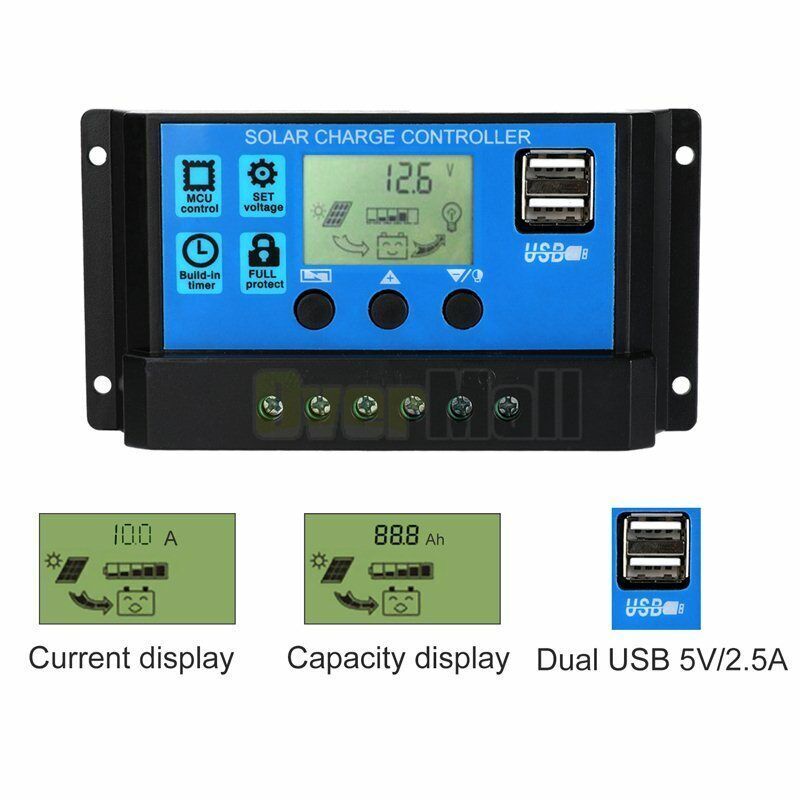

- Large-screen LCD display, display charge and discharge current, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameters, with power-off memory and other functions.

- Dual USB output, the maximum current is 2.5A. Equipped with all necessary protection devices, the control parameters of the system are adjustable, easy to set up and operate. Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery. Two-way MOS tube anti-backflow circuit, high power charging mode, ultra-low heat.

- Built-in short-circuit protection, open-circuit protection, reverse connection protection, overload protection. Reverse current protection, low calorific value, with automatic recovery function, will not damage the controller.

- Real-time display of temperature, charging current and discharging current. Currently autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, bidirectional focusing tracking.

Features:
-Built-in industrial micro controller.
- Large LCD/LED display, display charge and discharge current, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameters, with power-off memory and other functions.
-3-stage charge management, PWM battery charge as well as MPPT solar charge controller.
-Built-in short-circuit protection, open-circuit protection, reverse protection, overload protection.
-Dual USB output, the maximum current of 2.5A, to support Apple mobile phone charging.
-Dual reverse current protection, low heat production.

Specifications:
Rated voltage:12V/24V
Charging mode:PWM+MPPT
Rated current: 100A
Max PV VOTAGE:50V
Max input power:360W(12V) 720(24V)
Colour: orange
Material: Plastic
Size: 133x70x35mm/5.24.
Display: LCD screen
Self-consumption: <10MA
Overcharge protection: 14.4V/28.8V
Overcharge float charge: 13.7V / 27.4V
Charge recovery voltage: 12.6V / 25.2V
