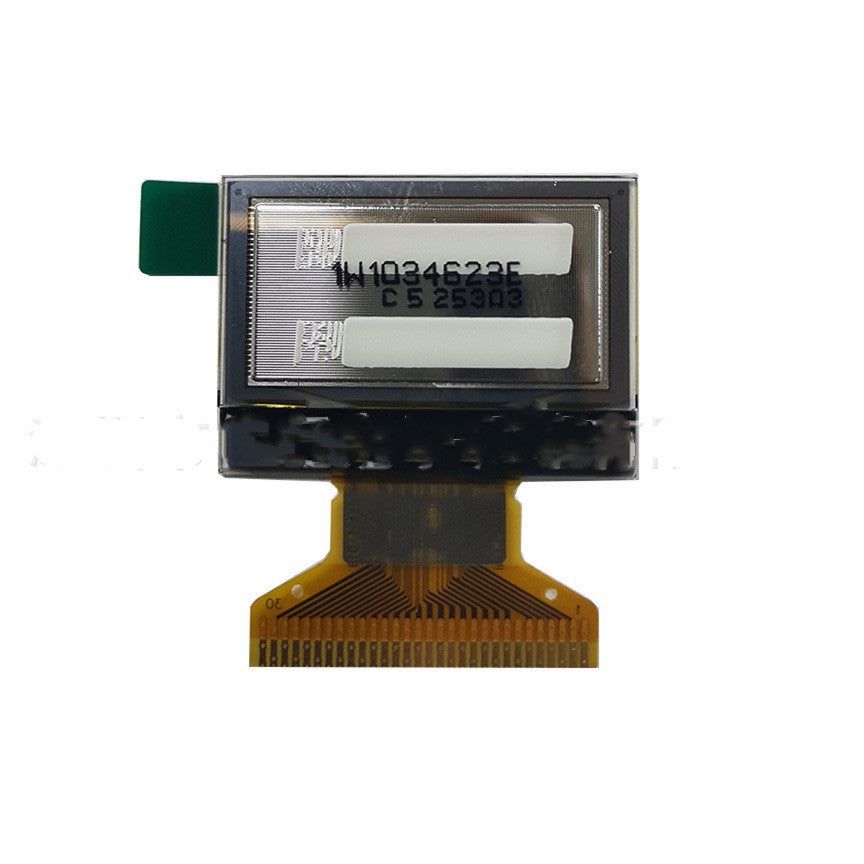

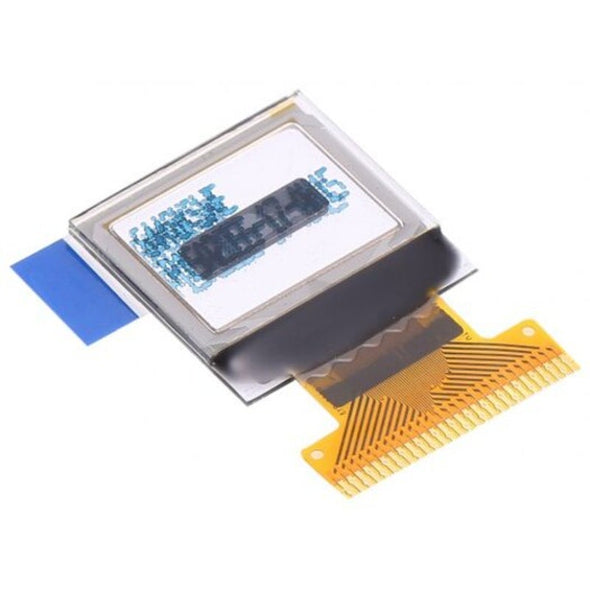

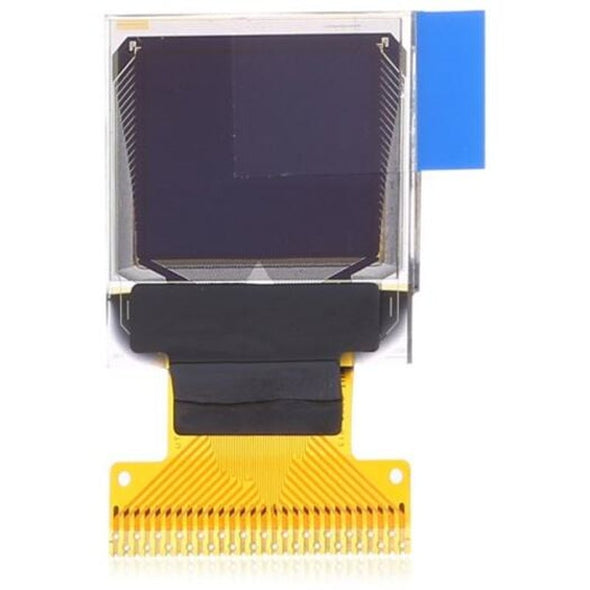

Displaying the 0.96-inch RGB YY fill pixel matrix
0.96inch OLED
Sale price
CHF 9.90
Regular price CHF 10.90
Skip to product information
Displaying the 0.96-inch RGB YY fill pixel matrix
Sale price
CHF 9.90
Regular price CHF 10.90
Free shipping, no minimum purchase. Estimated delivery time: 12 to 24 days. Depending on the product, your order ships from a European warehouse or from Asia.
Product Information:
Display Colors: Yellow & Blue, Yellow, Blue
Dot matrix: 128(W)×64(H)
Driver chip: SSD1306Z/SH1106
Connection interface: 8-bit8080, 8-bit6800, 4-wire SPI, I2C
Operating temperature: -40°C~+70°C
Dot size: 0.15(W)×0.15(H) mm2
Aperture ratio: 78%
Display area: 21.74(W)×11.2(H) mm2
Panel size: 26.7(W)*19.26(H)*1.3(D)mm3
A area size: 0.96 inch
Full screen lighting: the power consumption of the whole machine is about 22.75mA;
Ordinary Chinese characters are displayed on the whole screen: power consumption is about 5mA;
All black, no display, no sleep: power consumption 1.2mA;
Sleep state: about several hundred uA
Features:
0.96 inch OLED is a 128×64 dot matrix display
The OLED screen is self-illuminating, no backlight is needed, and the display is bright and sharp regardless of day or night! The effect is much better than LCD screen.
Packing list:
Dot matrix display*1
