Mini Thermal Imager Microscope

Product Information:
Resolution: 48640 effective temperature measurement points
Name: Super lR Cam Mini microscope special salted thermal imager
Packing size: 191*171.5*38mm
Input voltage: 5v
Temperature measurement range: 20~120-c
Interface type: Type-c

Features:

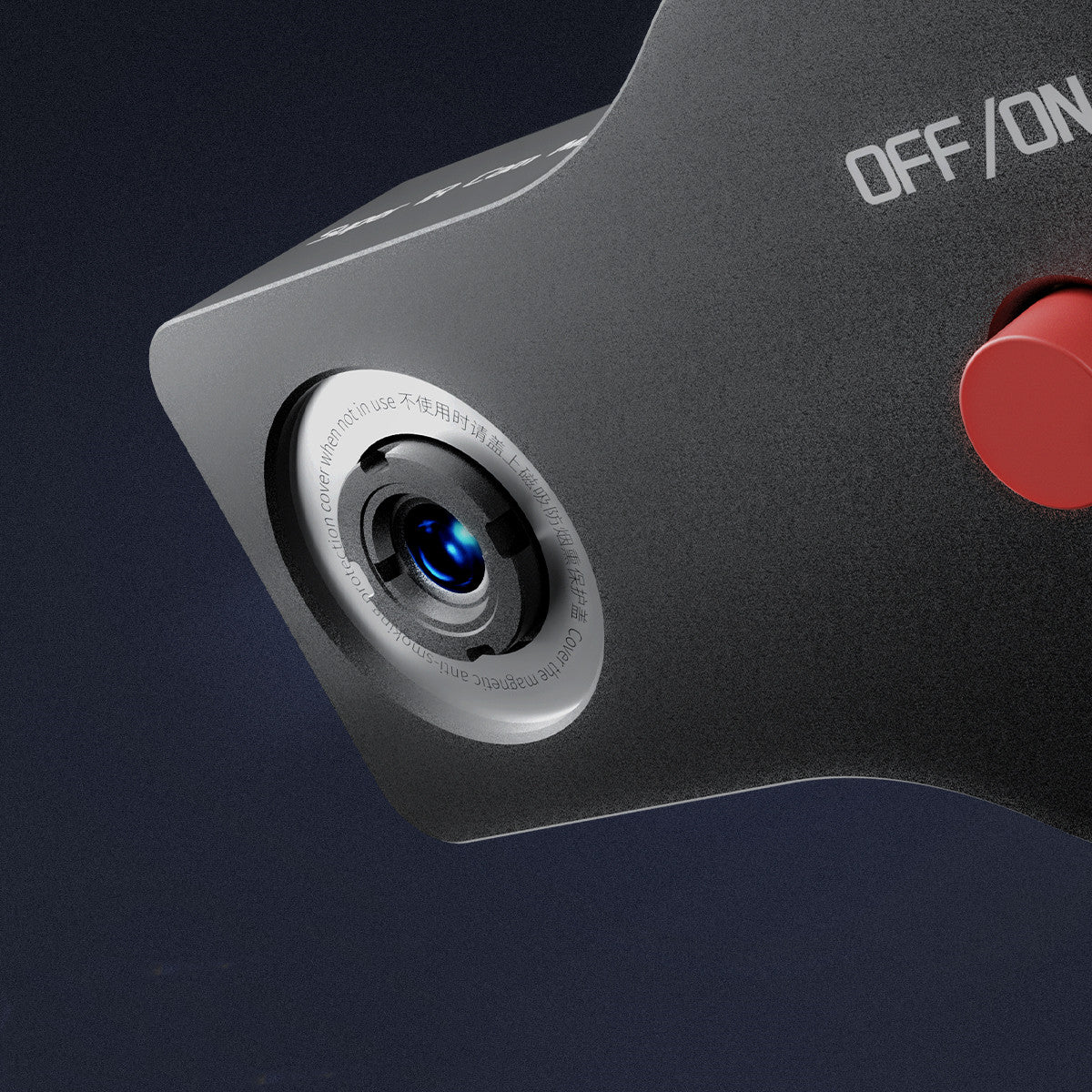

Infrared heat sensor, 48640 (256*190) effective temperature measurement points with a protective cover that can be blocked if not in use

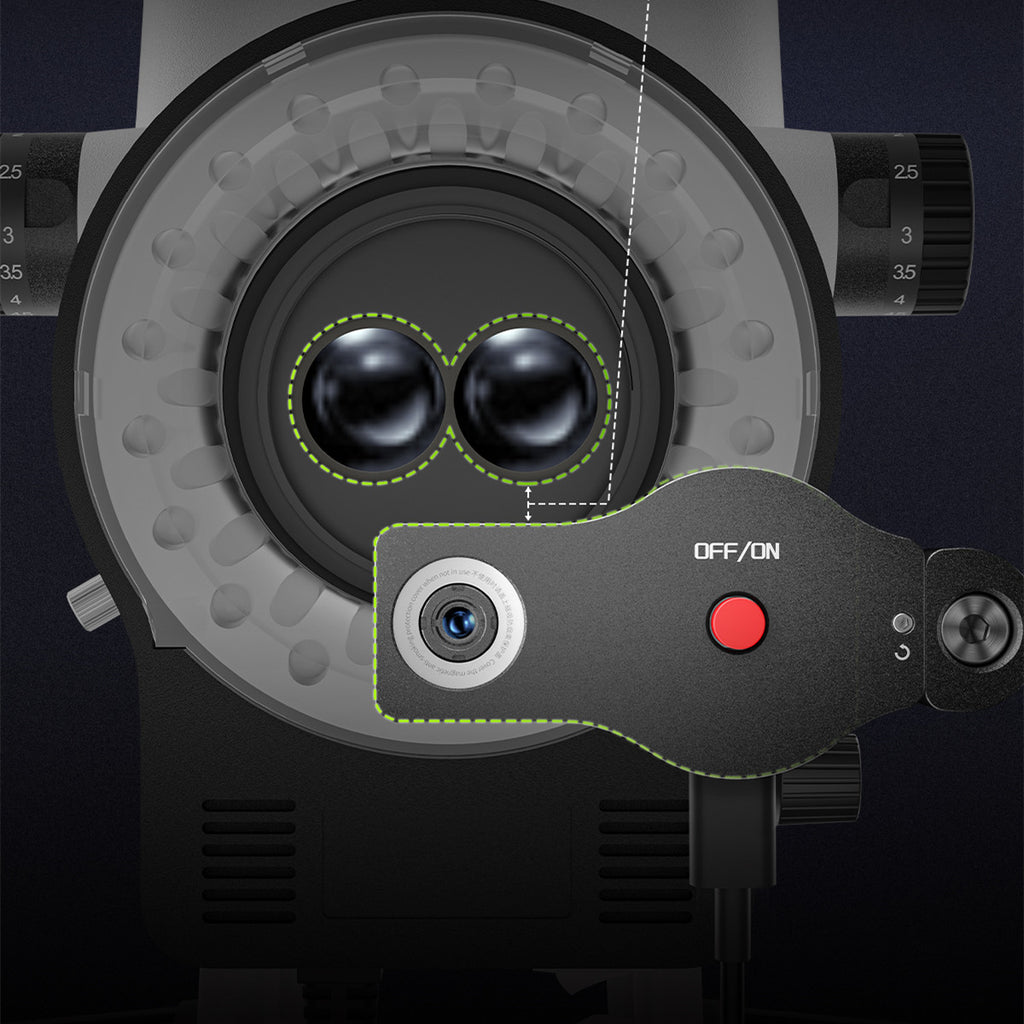

Do not block the lens, compatible with various high and low microscope light sources

The rotation mechanism can be adjusted to provide any rotation angle, suitable for different microscope heights, and make images more synchronized

Detection is more intuitive, visible light/thermal imaging at the same position, more intuitive

Separate extension bracket compatible with more models

Compatible with a variety of thermal imaging, other thermal imaging models can also be modified

Suitable for multiple applications

Fast current leakage quickly locates abnormal temperatures based on real-time temperature, by adjusting the temperature range to pinpoint the fault in detail

PCBA rapid diagnosis, available for technicians, with fast current checking function, to find fault locations faster and more accurately

3D effect, available for evaluators, 3D effect mode can better display heat distribution

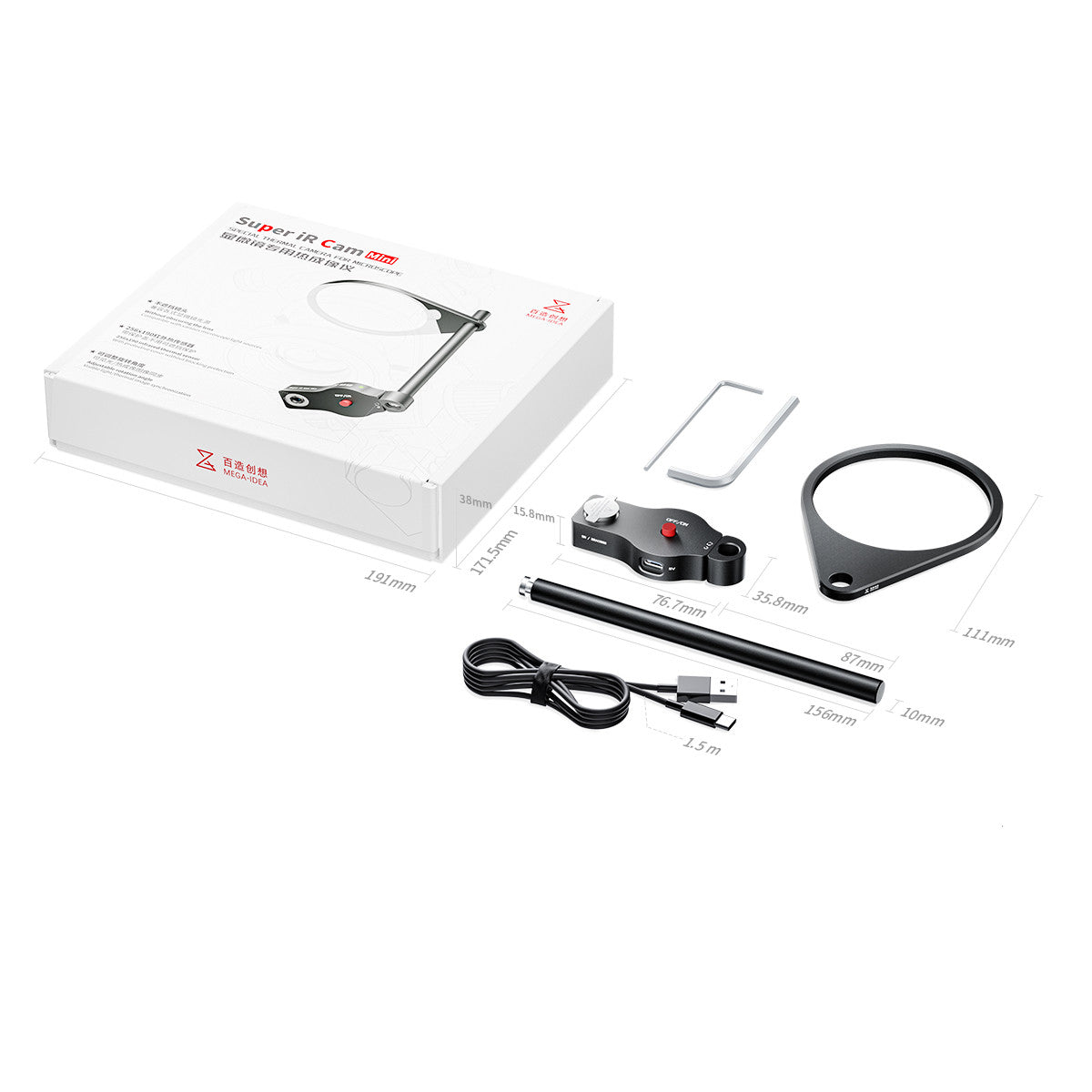

Packing List:
Thermal imager main unit *1
Vertical fixing bar *1
Bracket for microscope extension *1
Type-C black USB2.0 cable * 1
L-shaped H3.0 hex key *1
L-shaped H1.3 hex key *1
Hex socket screw *1
